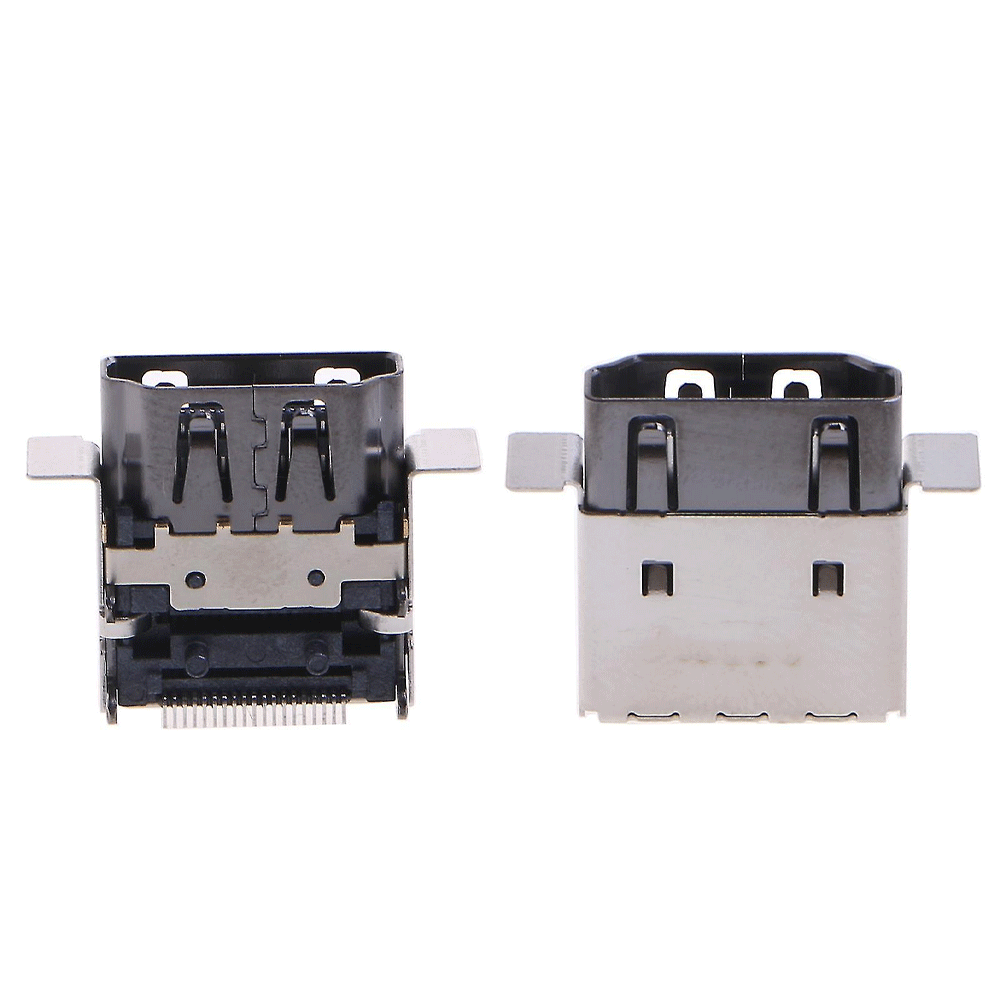

HDMI Port Socket / Connector Replacement for Xbox Series X Console (Motherboard)
$15.00 Inc GST
Brand-new HDMI 19-pin board-mount connector for Xbox Series X.
Replaces a damaged HDMI jack to restore video output. Solder-on part—match footprint/anchor layout; professional micro-soldering recommended.
| Weight | 0.3 kg |
|---|---|
| Dimensions | 25 × 17 × 4 cm |
| Brand Name | STS |
34 in stock
Description
Product Description
Brand-new HDMI port connector for the Xbox Series X mainboard. Use this solder-on socket to replace a bent or loose HDMI jack and restore stable video output (up to the console’s rated capability). Match the footprint, peg/anchor layout, and pin pitch to your specific board revision. Professional micro-soldering is required.
Key Points
• Condition: Brand New
• Compatibility: For Microsoft Xbox Series X console (not Series S / not Xbox One)
• Function: Replaces a damaged HDMI jack to restore display output
• Build: Shielded 19-pin HDMI female with through-hole anchor legs
• Included: 1 × HDMI port (board-mount connector only)
Product Features
• OEM-style housing and anchor legs for strong mechanical retention
• Gold-plated contact pins for reliable signal integrity
• Fits the Series X HDMI footprint (verify shell pegs/pin pitch)
• Individually packed to prevent bent pins during transit
Product Specifications
• Brand: Unbranded / Aftermarket
• Type: HDMI port socket (female, PCB board-mount)
• Interface: HDMI 19-pin
• Compatible Brand: Microsoft
• Compatible Model: Xbox Series X
• Material: Metal shield + PCB-mount contacts
• Items Included: 1 × HDMI port connector
Product Note
• Professional tools/skills required (hot air, microscope, flux, wick).
• Confirm Series X board revision and peg/anchor layout before purchase.
• Photos available on request; images may be illustrative.
