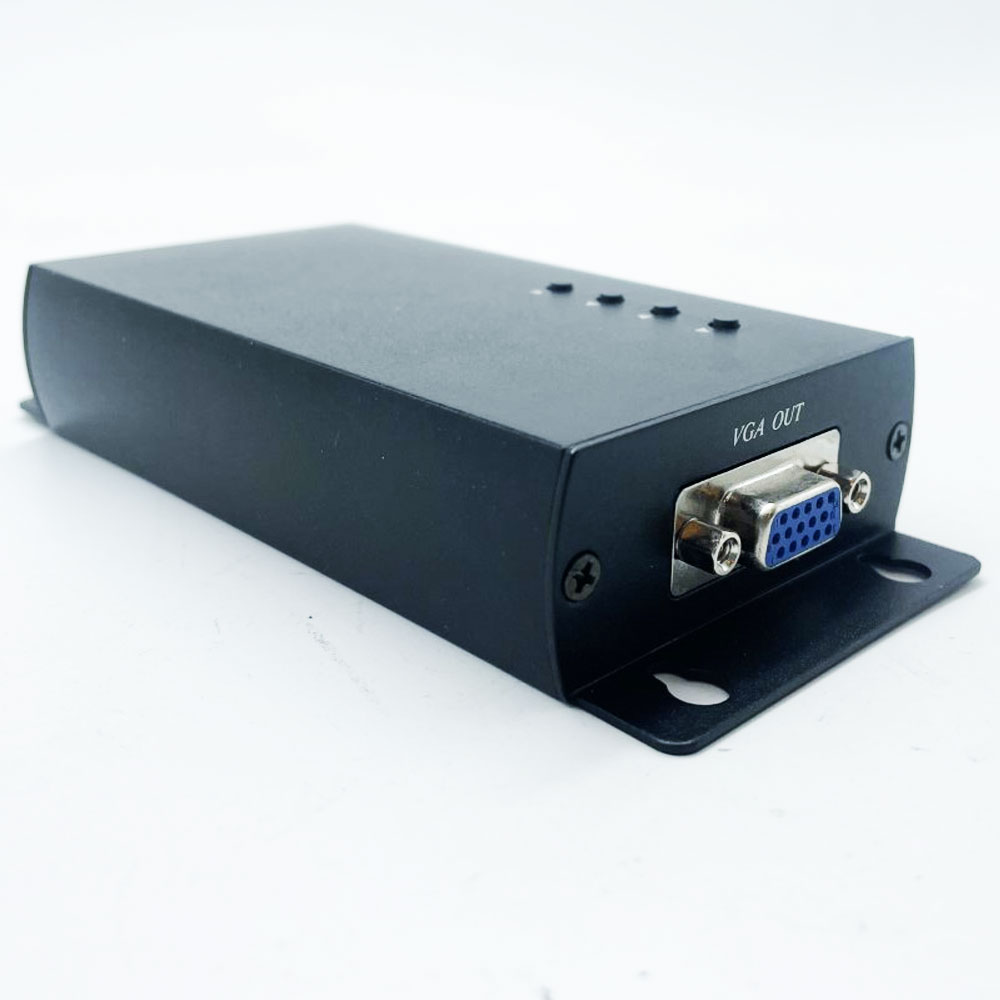

Universal Video to VGA Converter
$85.00 Inc GST
Universal Video to VGA Converter
| Weight | 0.5 kg |
|---|---|
| Dimensions | 21 × 16 × 7 cm |
1 in stock
Description
Description
Features:
- Specially designed for VGA, CCTV colour monitor.
- Support NTSE, PAL video system.
- Built in auto memory function.
- Compact size, plug and play installation.
- On screen display function: Brightness, Tint, colour, Contrast.
- Resolution: NTSC : 720 x 480 @ 60 Hz. Â Â Â PAL : 720 x 576 @ 50Hz.
- PAL, NTSC auto configure.
- Power supply included.
Operation Controls and Function:
- 4 x Function buttons : UP, DOWN, LEFT, RIGHT, press any button display OSD.
- OSD Screen: press UP, DOWN to choose Brightness, Tint, Colour, Contrast.
- OSD Screen: Press LEFT, RIGHT to adjust the value of Brightness, Tint, Colour and Contrast.
- To back factory default: re-plug the power and press UP button until power LED flash.
- NOTE: If the picture abnormal at the first setting on LCD monitor, please adjust your LCD for normal picture.
Specifications:
| ITEM NO | AD001 |
| System | NTSC, PAL |
| Resolution | NTSC: 720 x 480 @ 60 Hz, PAL: 720 x 576 @ 50Hz. |
| VGA Connector | 15-Pin Mini D-Sub (High Density) |
| Function Switch | Button x 4 |
| Function Adjust | Brightness, Contrast, Colour, Tint |
| Power Supply | 5V DC, 1000mA Regulated (External) |
| Power Consumption | 200mA (Max) |
| Temperature | Operation: 0 to 55ºC, Storate: -20 to 85ºC, Humidity: Up to 95% |
| Dimensions | 145mm x 67mm x 27.5mm |
| Weight | 220g |
