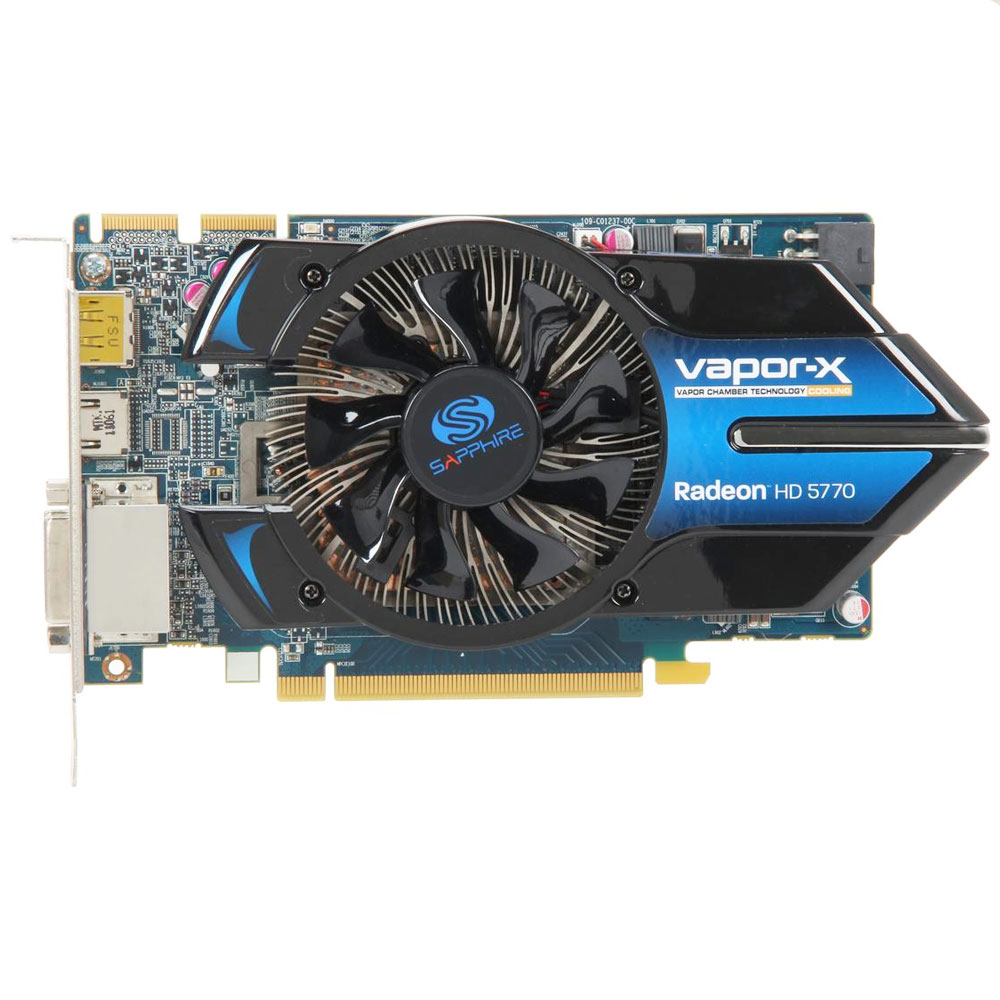

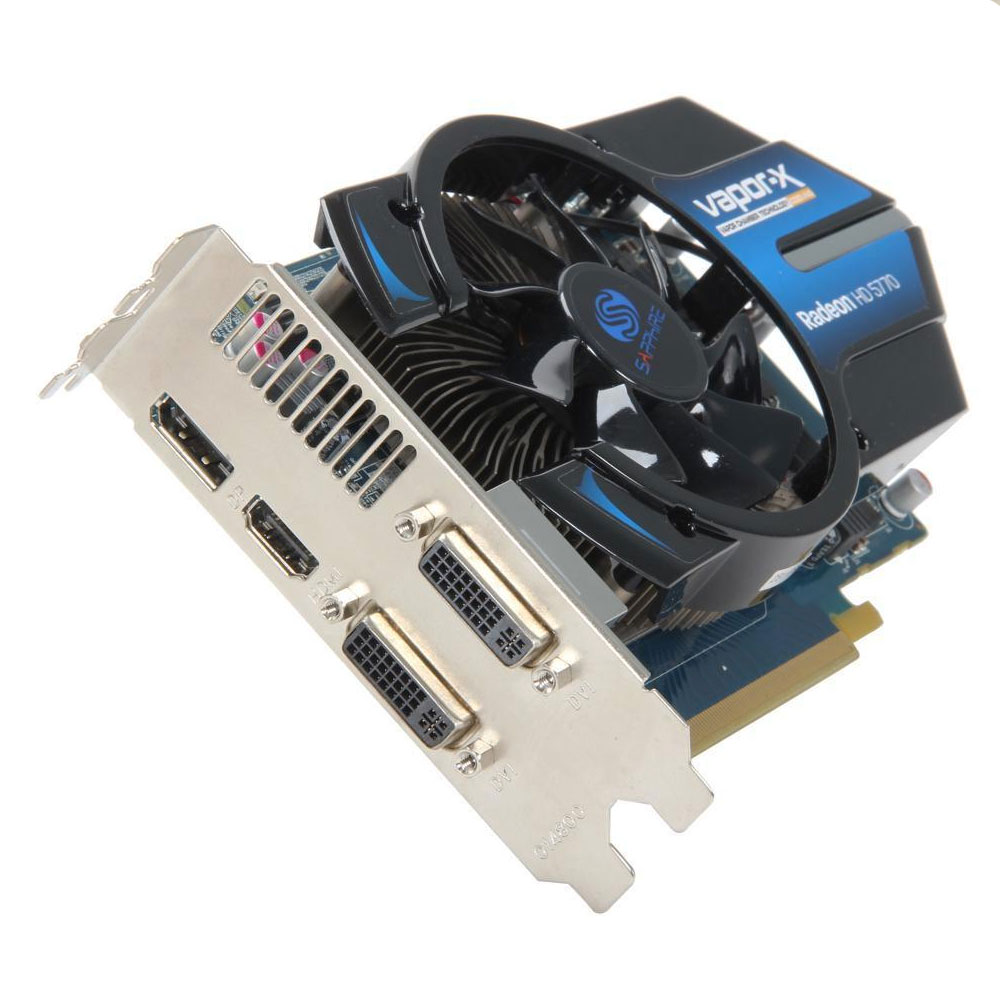

SAPPHIRE Vapor-X Radeon HD 5770 1GB GDDR5 PCI Express 2.0 x16 CrossFireX Support Video Card (11163-05)

$85.00 Inc GST

SAPPHIRE Vapor-X Radeon HD 5770 1GB GDDR5 PCI Express 2.0 x16 CrossFireX Support Video Card (11163-05)

Weight0.8 kg
Dimensions30 × 25 × 9 cm

2 in stock

Description

Description

Description:

SAPPHIRE Technology is now shipping a new graphics card in the highly successful HD 5000 series, the SAPPHIRE HD 5770 Vapor-X. It delivering the same value for money performance as the standard model, whilst working at lower operating temperatures and significantly more quietly. The SAPPHIRE HD 5770 Vapor-X is based on the latest graphics architecture from the ATI division of AMD, namely the second generation of GPU to be built in its 40nm process. It supports the advanced graphical features of DirectX 11, and delivers spectacular video clarity, speed and visual effects over multiple monitors using ATI Eyefinity.

Key Features:

  • Advanced GDDR5 Memory Technology
  • AMD Eyefinity
  • Vapor-X Technology
  • 40nm Process Technology
  • AMD Stream Technology
  • AMD Avivo HD (DVD/HD-DVD/Blu-ray Playback)
  • AMD CrossFireX Multi-GPU Technology
  • Shader Model 5.0
  • AMD Catalyst Control Center
  • Accelerated Video Transcoding
  • Dolby TrueHD and DTSHD Master Audio Support
  • AMD PowerPlay

Condition:

  • This product is pre-owned. Perfect working. Comes with 03 months warranty.

Warranty:

At System Technology Services, we are selling Used / refurbished computer parts. All of these are thoroughly tested. before we advertise them for sale. Also, the gadgets are in perfect working condition.

All used items come with a 03 Months WARRANTY from the Seller.

The warranty DOES NOT cover;

    • Physical damage.
    • Tampering.
    • Repairs done by a third party.GV-N250-1GI
    • Liquid Damage.

NOTE:

  • No tools or instruction manual is provided.
  • We also provide REMOTE repair services. You can ship your device to us. We will fix it and ship it back to you.

Specification:

Name / Brand / Architecture

Manufacturer: Sapphire
Model: VAPOR-X HD 5770 1GB GDDR5
Based on: ATI Radeon HD 5770 [Compare]
Target market segment: Desktop
Die name: Juniper XT
Architecture: TeraScale 2 Unified Processing Architecture
Fabrication process: 40 nm
Transistors: 1.04 billion
Bus interface: PCI-E 2.1 x 16

Frequency

Graphics clock: 860 MHz

Memory specifications

Memory size: 1024 MB
Memory type: GDDR5
Memory clock: 1200 MHz
Memory clock (effective): 4800 MHz
Memory interface width: 128-bit
Memory bandwidth: 76.8 GB/s

Cores / Texture

Color ROPs: 16
Z/Stencil ROPs: 64
Stream processors: 800
Texture units: 40
RAMDACs: 400 MHz
Decoders: Adobe Flash
DivX
H.264
MPEG 1
MPEG-2
VC-1

SLI / Crossfire

Maximum crossfire options: 2-way

Electric characteristics

Maximum power draw: 108 W

Video features

Multi-monitor: Up to 4 displays
Maximum digital resolution: 2560 x 1600
Maximum DP resolution: 2560 x 1600
Maximum DVI resolution: 2560 x 1600
Maximum HDMI resolution: 1920 x 1200
Maximum VGA resolution: 2048 x 1536
Anti-Aliasing technologies: 24 x MSAA
24 x SSAA
Adaptive AA
HDMI: Yes
HDMI version: 1.3

Performance

Pixel fill rate: 13.76 Gigapixels/s
Texture fill rate: 34.4 Gigatexels/s
Single presision compute power: 1376 GFLOPS
Double precision compute power: n/a

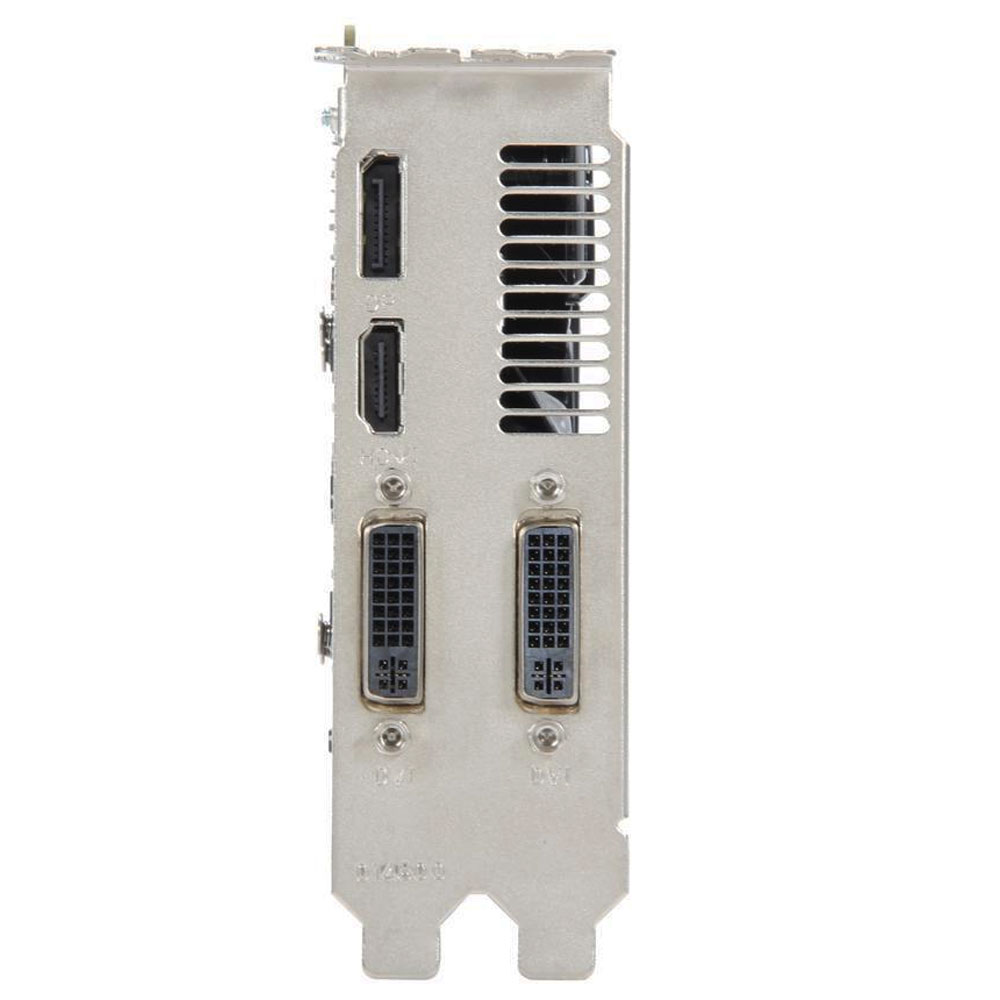

External connectors

Standard display connectors: 2 x Dual-Link DVI-I
DisplayPort
HDMI
Power connectors: 1 x 6-pin
Audio input for HDMI: Yes

Dimensions

Width: Dual-Slot

Other features / Support

Other features: ATI/AMD PowerPlay
Direct Compute 11
HD3D Technology
HDCP
High Dynamic Range (HDR) Support
Open CL support: 1.1
OpenGL support: 4.1
DirectX support: 11.0
Shader model: 5.0
