Programmable 32V 5A Adjustable Dc Power Supply With RS232 MCH-3205SK

Description

Product Description

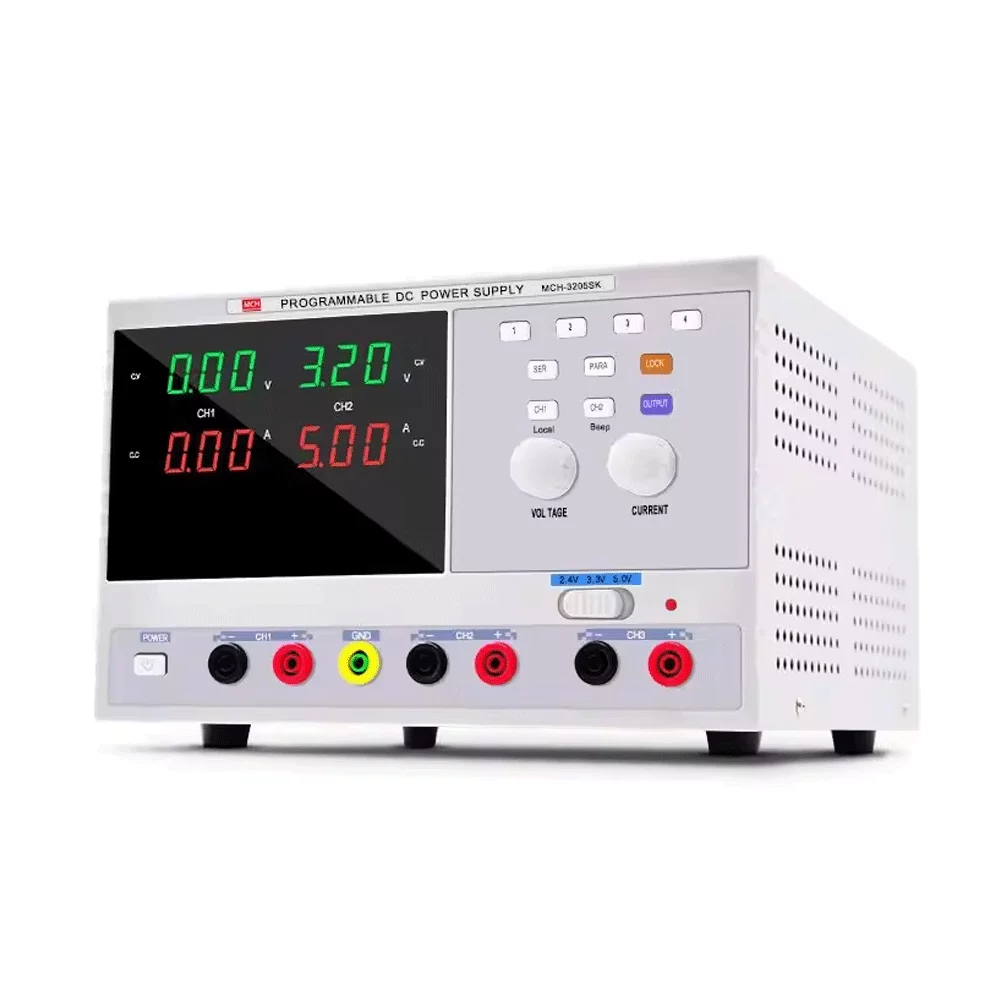

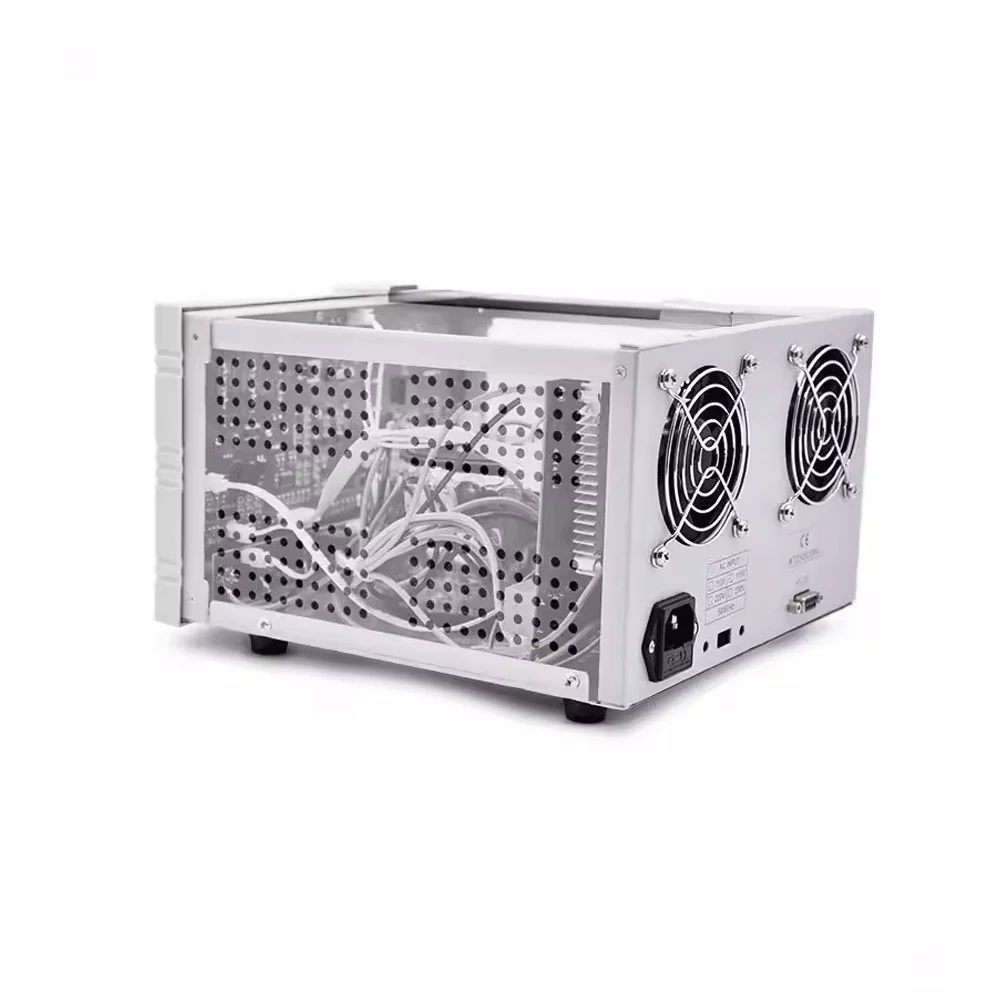

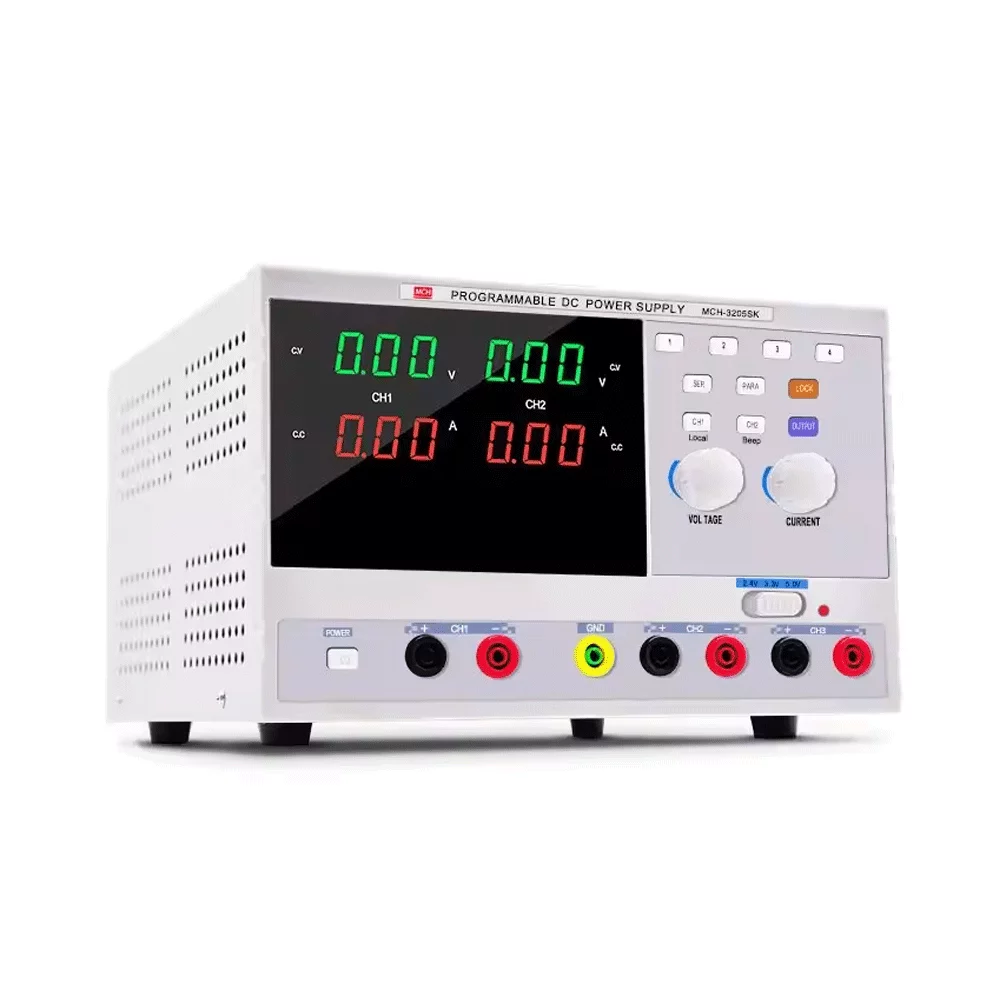

Programmable 32V 5A Adjustable DC Power Supply With RS232 MCH-3205SK (New)

The MCH-3205SK is a high-quality programmable DC power supply, perfect for laboratory and industrial use. It features adjustable voltage and current outputs with precise control and monitoring. With an RS232 interface, it offers enhanced connectivity for remote operation and data logging. This unit is new and in pristine condition.

Full Specifications

General

• Model: MCH-3205SK
• Type: Programmable DC Power Supply
• Condition: Brand New

Electrical Specifications

• Output Voltage: 0-32V
• Output Current: 0-5A
• Power Output: 160W (maximum)
• Line Regulation:
  • Voltage: ≤0.01% + 3mV
  • Current: ≤0.01% + 3mA
• Load Regulation:
  • Voltage: ≤0.01% + 3mV
  • Current: ≤0.01% + 3mA
• Ripple & Noise:
  • Voltage: ≤1mV rms (5Hz – 1MHz)
  • Current: ≤3mA rms (5Hz – 1MHz)
• Display Resolution:
  • Voltage: 10mV
  • Current: 1mA

Features

1. Programmable Control: RS232 interface for remote control and programming.
2. Adjustable Output: Fine and coarse adjustment knobs for precise voltage and current settings.
3. High Precision: Accurate voltage and current output suitable for lab and industrial applications.
4. Protection Features: Over-voltage protection (OVP), over-current protection (OCP), and over-temperature protection (OTP).
5. Cooling System: Built-in cooling fan with temperature control to prevent overheating.
6. Memory Function: Stores up to 10 sets of preset voltage and current values for quick recall.
7. LCD Display: Clear, backlit LCD screen displaying voltage, current, and power parameters.

Connectivity

• Interface: RS232 port for communication and control via PC.
• Input Voltage: 110V/220V AC ±10%, 50/60Hz (switchable)

Physical Specifications

• Dimensions: Approximately 110 x 250 x 160 mm (W x H x D)
• Weight: Approximately 4 kg (8.8 lbs)
• Housing: Metal casing for durability and heat dissipation

Applications

• Laboratory Use: Ideal for experiments requiring precise voltage and current settings.
• Educational Use: Suitable for teaching and demonstrations in electronics courses.
• Industrial Use: Useful in manufacturing processes and quality control testing.
• DIY Projects: Great for hobbyists working on electronics projects.

Note:

The package includes one new programmable 32V 5A adjustable DC power supply with RS232 interface (MCH-3205SK).
