Product Description

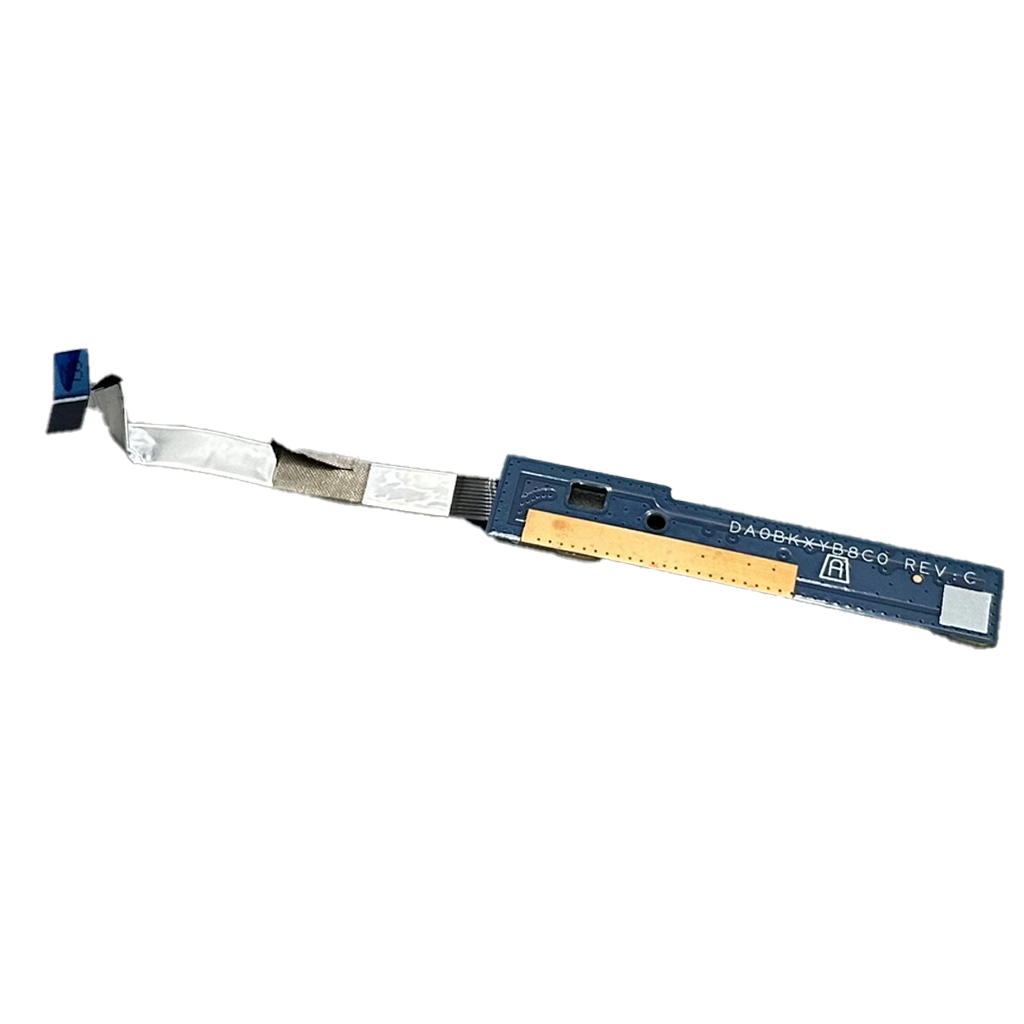

ASUS TUF506II-IH73 LED board with cable (DA0BKXYB8C0) is an internal indicator/backlight daughterboard used in the TUF Gaming F15 FX506II family. It connects to the motherboard via the model-specific harness and mounts to the factory standoffs. Ideal replacement when status LEDs/backlight indicators are non-functional or intermittent. Please match the board code DA0BKXYB8C0, connector orientation, and mounting layout with your original.

Key Points (5)

• Condition: Tested & fully functional.

• Compatibility: For ASUS TUF506II-IH73 (FX506II family); match by board code and layout.

• Functionality: Restores LED/status indicator operation on supported units.

• Includes: LED board with cable/harness.

• Identifiers: PCB code DA0BKXYB8C0 printed on the board.

Product Features

• Direct drop-in replacement; reuses original screws and bracket points.

• Correct connector/harness for the TUF506II/FX506II internal layout.

• Helps resolve no-light or flickering status/LED symptoms.

• Factory-style fit; no chassis modification expected on supported models.

• Lightweight, low-power PCB designed for laptop use.

Product Specifications

• Brand: ASUS

• Model / Family: TUF Gaming F15 FX506II / TUF506II-IH73

• Type: LED indicator/backlight daughterboard with cable

• Board Code: DA0BKXYB8C0

• Interface / Connectivity: Model-specific board connector to motherboard

• Form Factor: Chassis-mounted PCB module

• Included: LED board + cable/harness

Product Note

• Minor cosmetic wear (e.g., light marks) may be present; performance unaffected.

• Ensure compatibility by confirming DA0BKXYB8C0, connector type, and mounting layout.

• Photos are available upon request for customer reference.

• Images shown are for illustration only.
